Land-Ocean Interactions in the Coastal Zone

LOICZ - Calculator

by M. Ponti and G. Giordani

WORKSHOP
LaguNet

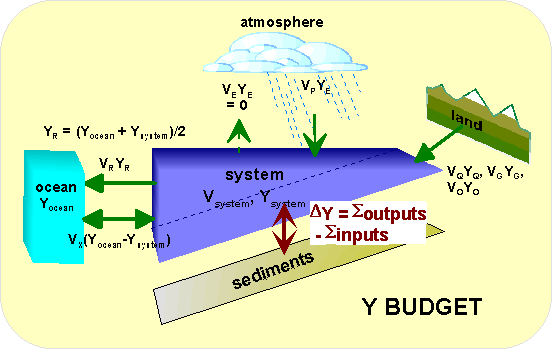

Simple Biogeochemical Budgets Calculator for one box - one layer model following the guidelines provided by Gordon et al. (1996). For further information visit the LOICZ web site.

(You must have JavaScript enabled in your browser to work with this calculator)


Provide the requested information (* necessary fields):

Area name Country

Author's name(s)
Affiliation
E-mail

Coordinates

(Units in Decimal Degrees)

North + South -

West + East -



Period N° of days *

  Area Volume Salinity [DIP] [DIN]
  * km2 (103 m3) (psu) (mmol m-3) (mmol m-3)

System

depth m

* * * *

Sea

-

-

* * *

Inputs/outputs Flow Salinity [DIP] [DIN]
(negative flows are outputs from the system) (103 m3 d-1) (psu) (mmol m-3) (mmol m-3)
Precipitation mm period-1 * * * *
Evaporation mm period-1 *
Ground water   * * * *

Others

Typology Flow Salinity DIP DIN
#  1
#  2
#  3
#  4
#  5
#  6
#  7
#  8
#  9
# 10
# 11
# 12
# 13
# 14
# 15

For the stoichiometric calculations define the C:N:P ratio for primary producers

C : N : P

Redfiled ratio for phytoplankton is 106:16:1

Atkinson & Smith ratio for macroalgae is 335:35:1


Results

Water and Salt Budget

Residual flow to the sea (VR) 103 m3 d-1
Average salinity at the boundary (SR) psu
Exchange flow between system and sea (VX) 103 m3 d-1
Turnover time (t) d

Nutrients Budget

DIP DIN
Average concentrations at the boundary (YR) mmol m-3
Daily load from precipitation (VDIYp) mol d-1
Daily load from ground water (VDIYg) mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Daily load from mol d-1
Total load during study period kg period-1
DIP DIN DIP DIN
Residual exchange between system and sea (VRDIYR) mol d-1 kg period-1
Exchange between system and sea (VXDIYX) mol d-1 kg period-1
Total sea-lagoon fluxes (negative = export) mol d-1 kg period-1
Difference: sources - sinks (DDIY) mol d-1 kg period-1
Daily difference: sources - sinks (DDIY) per m-2 mmol m-2 d-1

The system act as:







Stoichiometric calculations

Net Ecosystem Metabolism: p - r (NEM) mmol m-2 d-1
Based on the NEM, the system globally is
Expected DDIN mmol m-2 d-1

Difference between atmospheric nitrogen fixation

and denitrification processes (Nfix-denit)

mmol m-2 d-1

Reference

Gordon, Jr., D. C., P. R. Boudreau, K. H. Mann, J.-E. Ong, W. L. Silvert, S. V. Smith, G. Wattayakorn, F. Wulff and T. Yanagi, 1996. LOICZ Biogeochemical Modelling Guidelines. LOICZ Reports & Studies No 5, 1-96.
